| Models | OPAX-2060 | |

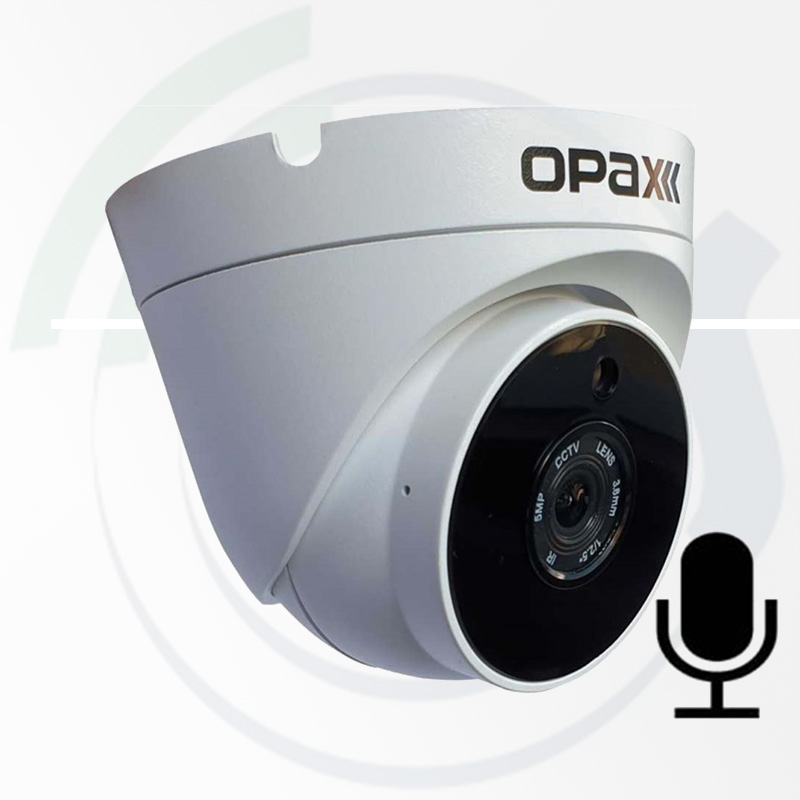

| Models | 3.0MP Ultra low-night HD Network Camera Module | |
| Image Sensor | 1/2.7” 3.0MP CMOS 317 | |
| Min. Illumination | Color：0.01Lux | |
| Solition | MSTAR335+SC3335 | |
| WARM LED | 18SMD LED | |
| BLC | 1-255 Arası Ayarlanabilir | |
| HLC | YES (1-255) Arası Ayarlanabilir | |
| 2DNR | 1-255 Arası Ayarlanabilir | |
| 3DNR | 1-255 Arası Ayarlanabilir | |
| W/B MODE | AUTO/MANUAL | |
| FORCED ANTI FLICKER | DISABLE /ENABLE | |
| Horizon Flip | DISABLE /ENABLE | |
| Vertical Flip | DISABLE /ENABLE | |
| Defogging | DISABLE /ENABLE | |
| WDR MODE | YES SUPPORT | |
| IRCUT MODEL | AUTO/TIMING/EXTERNAL/MANUAL | |
| KEEP COLOR | YES/ NO SEÇİLEBİLİR | |
| LIGHT MODE | Pure Infrared light / Pure White light /Open White Light When Infrared Triggered Open Infrared Light When White Lifgt Triggered |
|
| LIGHT IMAGE OPTION | Normal/Prevent Overeexposure/ Licence plate mode 1 to 6 | |
| LIGHTS OF SENSITIVITY | 1-100 Ayarlanabilir | |
| LIGHT BRIGHTNESS MODE | Auto / Manual /BRIGHTNESS Restirected | |
| LIGHT BRIGHTNESS | %10 -%100 | |
| LED DELAY | 0,001-1,5 | |
| HTTP Port | 80 ( Ayarlanabilir) | |
| Control Protocol | 8091( Ayarlanabilir) | |
| RTSP | 554( Ayarlanabilir) | |
| HIK PORT | 8000 ( Ayarlanabilir) | |
| P2P | DANALE Destekler | |
| Motion Detection | Destekler | |
| IO | Input /Output Destekler (Günlük Haftalık program) | |
| S/N Ratio | ≥37dB | |
| POE | POE DESTEKLER | |
| Encode Mode | H.265+ / H.265 / H.264 | |
| Wide Dynamic Range | Digital WDR | |
| Digital noise Reduction | DNR, 3DNR | |
| Exposure Mode | Auto/Manual/shutter mode(shutter range variable) | |
| White Balance | Auto/Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp | |
| Day & Night | Day / Night / External control(IR Cut Filter) | |
| Video Compression | H.265+/H.265/H.264 Main Profile | |
| Audio Compression | G711U/G711A DAHİLİ SESLİ SESLİ | |
| Max. Image Resolution | 2560*1440 at 20fps | |
| Image Resolution | Main stream | 3MP at 25fps, 1080P/720P/D1 at 30fps |
| Sub-stream | D1/VGA/640*360/CIF at 30fps | |
| Streams | Dual streams | |
| Bitrate | CBR/VBR, bitrate: 50Kbps~6Mbps variable | |
| Simultaneous Live View | Main stream Up to 5, Sub-stream Up to 5 | |
| OSD | Support camera name, time display .etc, OSD position can be adjusted | |
| Motion detect | Support | |
| IO | Unsupport | |
| P2P | Android, IOS | |
| Protocols | HTTP, NTP, DHCP, UDNP, RTSP, P2P, ONVIF | |
| Onvif | Onvif 2.6 | |
| Network | 10/100M Base-TX Ethernet, RJ45 Connector | |
| Store | Unsupport | |
| Protection Level | TVS 6,000V lightning protection | |
| Power Supply | 12V DC at 0.7A | |
| Dimensions Board | 38x38mm Single board | |
| Working Temperature | -30°C ~85°C, Humidity ≤90%RH(Unsupport-condensing) | |
