Model No |

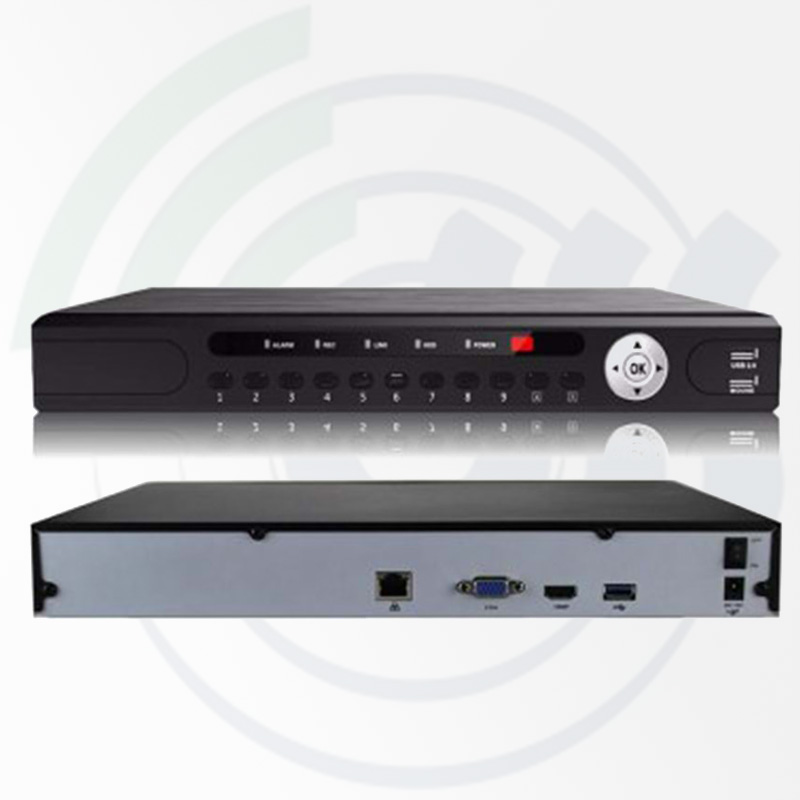

OPAX-36001 | |
| System | Main Processor | ARM Cortex A17 Quad-core Processor |
| Operating System | Embedded LINUX | |
| Video | Input | 36 Channel, Support 4096×2160, 2592×1944, 2048×1536, 1920×1080, 1280×960, 1280×720, etc, Incoming Bandwidth: 300MB |
| Output | 1 VGA, 1 HDMI | |
| Audio | Input | 1 Port RCA |
| Output | 1 Port RCA | |
| Alarm | Sensor Input | NO |
| Output | NO | |
| Motion Detection | 36 Channel | |
| Email Alarm | Support | |
| Display | VGA | Resolution : 1920×1080 / 1280×1024 / 1280×720 |
| HDMI | Resolution : 4K 3840×2160 / 1920×1080 / 1280×1024 / 1280×720 | |
| Display Split | 36CHxD1 / 25CHxD1 / 16CHxD1 / 9CHxD1 / 4CHxD1 / 1CHx1080P / 1CHx3MP / 1CHx4MP / 1CHx5MP / 1CHx4K | |
| Digital Zoom | YES | |
| OSD | Camera Title, Time, Video Loss, Recording, Motion Detection | |
| Recording | Video Compression | H.264 |
| Resolution | 4K(4096×2160), 5MP(2592×1944), 4MP(2688×1520), 3MP(2048×1536), 1080P(1920×1080), 960P(1280×960), 720P(1280×720), D1 (704×576/704×480) | |
| Record Rate | PAL : 4K@30×25fps, 5MP@36×25fps, 4MP@36x25fps, 3MP@36×25fps, 1080P@36×25fps, 960P@36×25fps, 720P@36×25fps, D1@36×25fps NTSC : 4K@30×30fps, 5MP@36×30fps, 4MP@36×30fps, 3MP@36×30fps, 1080P@36×30fps, 960P@36×30fps, 720P@36×30fps, D1@36×30fps |
|
| Record Mode | Manual Timer Motion Detection | |
| Playback & Backup | Local Sync Playback | 4 Channelx4K |
| Remote Sync Playback | YES | |
| Search Mode | ALL, Channel, Manual, Time, Date, Motion Detection | |
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Digital Zoom | |
| Backup Mode | USB Device/Network | |
| Network | Interface | 1 RJ45 10M/100/1000M Adaptive Ethernet Interface |
| Network Functions | HTTP, TCP/IP, IPv4, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, FTP, IP Search, P2P | |
| Onvif Version | Support Onvif 2.4 | |
| Web Browser | IE6-11, Google Chrome (IE Tab), Firefox (IE Tab) | |
| CMS Software | Support Windows XP / Windows Vista / Windows 7 / Windows 8 | |
| Cloud Support(P2P) | Yes | |
| Smart Phone | iPhone, iPad, Android, Android Pad | |
| Hard Disk Driver | Interface Type | 2 SATA Interface |
| Capacity | Up to 12TB capacity | |
| General | Language | Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Farisa, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, korean, Dutch, Greek |
| USB Interface | 2 USB 2.0 Interfaces, 1 USB 3.0 Interface | |
| Power Supply | DC 12V/3A | |
| Working Environment | -10~55°C/10~90% | |
| Dimension(W×D×H) | 354×263×50mm | |
| Weight | 4.5Kg (without HDD) |
